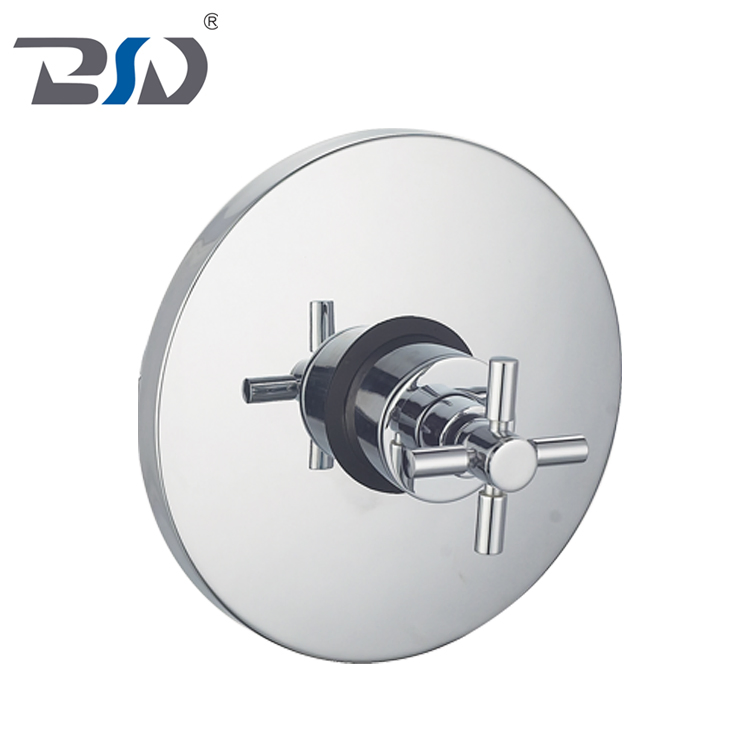

Concealed Thermostatic Shower Valve Ceramic Lever 1 Dial 1 Way
1 / 1
Concealed Thermostatic Shower Valve Ceramic Lever 1 Dial 1 Way

Concealed Thermostatic Shower Valve Ceramic Lever 1 Dial 1 Way

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
TSV-8036
Outlet Style
Shower
Type
Head
Structure
Trigeminal
Function
Thermostatic
Functional Design
Dual Handle
Body Material
Brass
Working Temp
0-90 Centigrade
Installation
Build in Wall
Certification
CE, ACS, WATERMARK

Product Description

Concealed Thermostatic Shower Valve

This Concealed Thermostatic Shower Valve features a ceramic lever with a 1-dial, 1-way configuration. Engineered for precision and safety, it provides a stable showering experience even when water pressure fluctuates.

Technical Specifications Overview
Item NumberTSV-8036
Body MaterialSolid Brass with chrome plated
Handle MaterialBrass with chrome plated
CartridgeBrass thermostatic cartridge, > 500,000 Times Open & Close
OutletsNo aerator, 4 ways diverter
Surface ProcessChrome, bronze, gold, antique brass, brushed nickel, etc.
Chrome LayerNi:2-3um, Cr 0.1-0.2um or Ni 8um , Cr 0.25um
Fixed WayBuilt in wall, Vertical or Horizontal fitting
Net Weight2355g without package

Key Features & Benefits

🛡️
38ºC SECURE StopBlocking button to maintain safety and prevent accidental scalding.
⚙️
EASY SystemMono-block internal cartridge that can be removed and replaced in seconds.
💧
ECO-stop FunctionLimits water flow to achieve savings of up to 45%.
🎯
ACCURATE ControlGuarantees safety by maintaining constant water temperature within +/-1 degree.
⚡
FAST ReactionUltra-fast reaction time to balance temperature variations instantly.

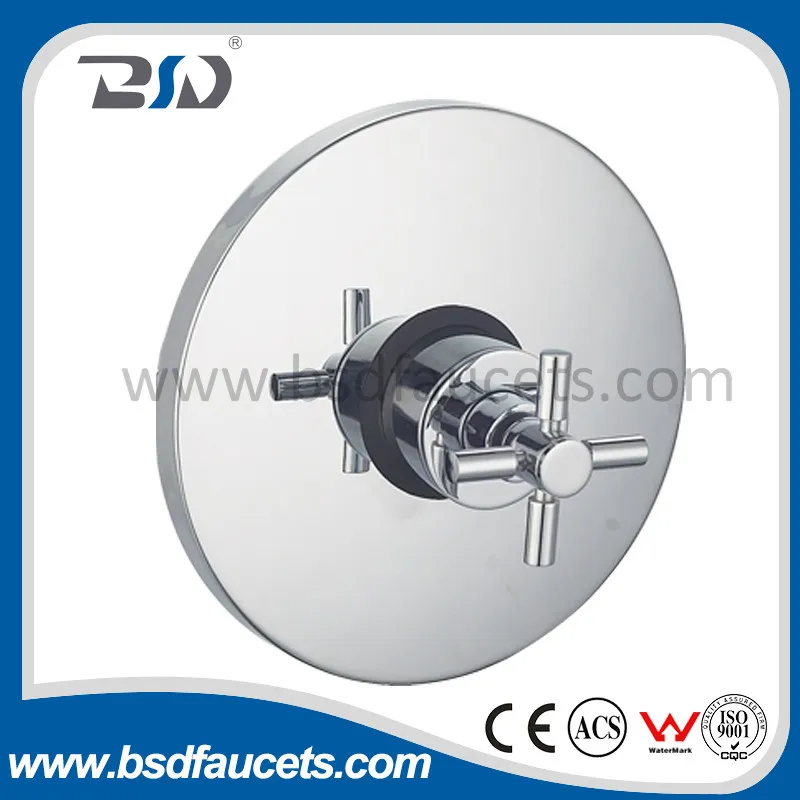

Shower Valve Internal View

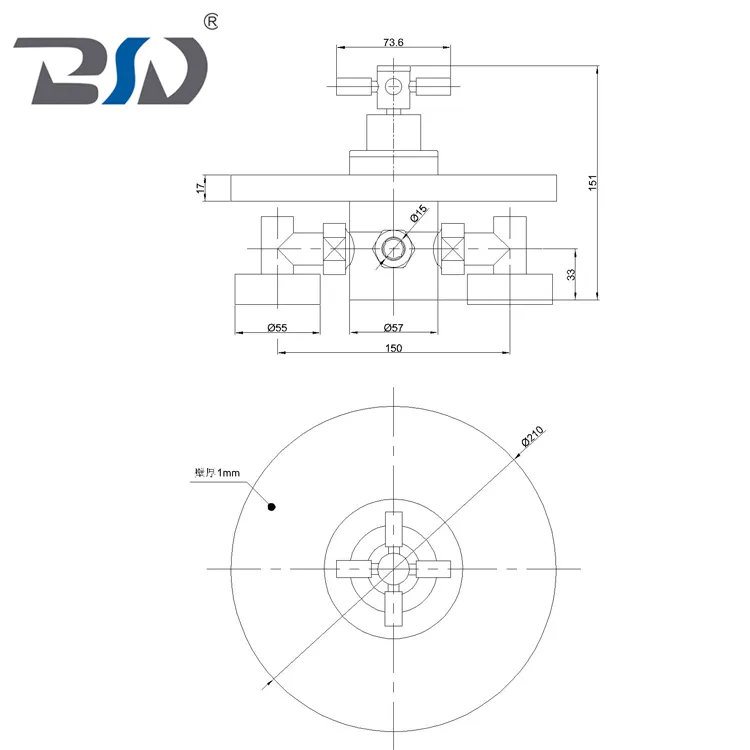

Valve Detail 1 Valve Detail 2

Packaging & Logistics

Product Code Description Box Size
TSV8036 Thermostatic shower valve 31*21*21cm

Quality Control Process

Our rigorous QC includes: Casting inspection, Leakage test after machining, Surface inspection after polishing/plating, Assembly leakage test, and final product measuring.

Packaging View Production Line
Production Header

Manufacturing Highlights

Full production line including Gravity Casting, Forging, Machining, and Polishing.
Equipped with modern testing machines for reliability and endurance.
Manufacturing capacity up to 20,000 units per month.
Systematic management and skilled engineering team.
Factory Facility 1 Factory Facility 2 Certificates

Frequently Asked Questions

Q: What safety features does the thermostatic valve include?
A: It features a 38ºC secure stop button and full thermal protection that shuts down the hot water within 1.5 seconds if the cold supply fails.
Q: Is the internal cartridge easy to maintain?
A: Yes, it uses an EASY system mono-block internal cartridge which can be taken out and replaced in a matter of seconds.
Q: What is the ECO-stop function?
A: The ECO-stop function limits the water flow, allowing for water savings of up to 45% without compromising performance.
Q: What happens if the hot and cold supplies are installed backwards?
A: The cartridge is fully reversible. You can simply remove the cartridge, rotate it 180 degrees, and replace it without re-plumbing.
Q: Which water systems are compatible with this valve?
A: Our valves are suitable for all systems: gravity-fed, pumped, unvented high pressure, or fully modulated combi-boilers.
Q: What certifications does this product hold?
A: The product is certified by CE, WATERMARK, ACS, and follows ISO9001/ISO14001 standards.
