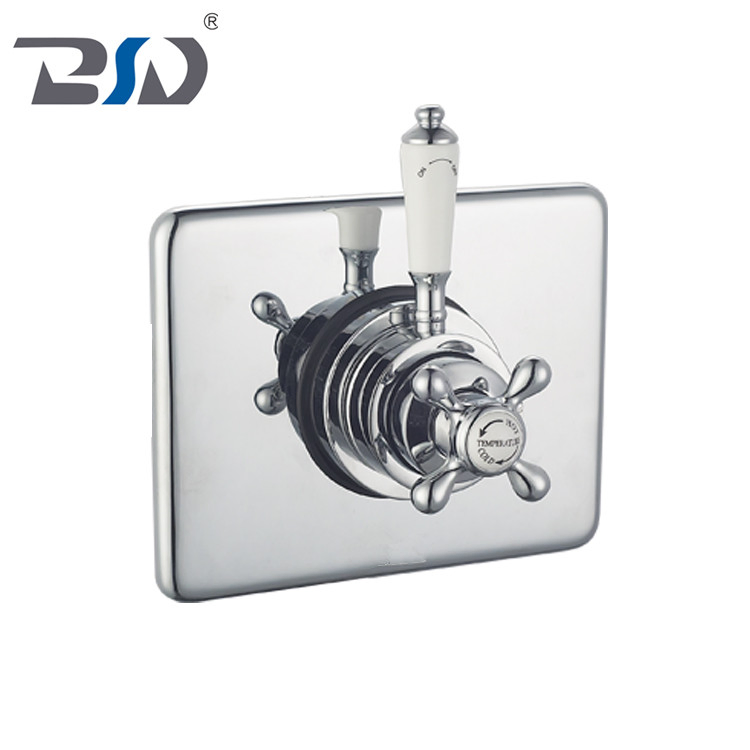

Concealed&Exposed Thermostatic Shower Valve with Rectangular Plate Ceramic Handle
1 / 1
Concealed&Exposed Thermostatic Shower Valve with Rectangular Plate Ceramic Handle

Concealed&Exposed Thermostatic Shower Valve with Rectangular Plate Ceramic Handle

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Technical Specifications

Model NO.TSV-8024
TypeHead
StructureTrigeminal
FunctionThermostatic
Number of HandlesDual Handle
Body MaterialBrass
Working Temperature0-90 Centigrade
InstallationBuild in Wall
CartridgeCeramic Disc
Production Capacity20,000PCS/Month
Thermostatic Shower Valve

Concealed & Exposed Thermostatic Shower Valve with Rectangular Plate Ceramic Handle

Product Description

Detail 1

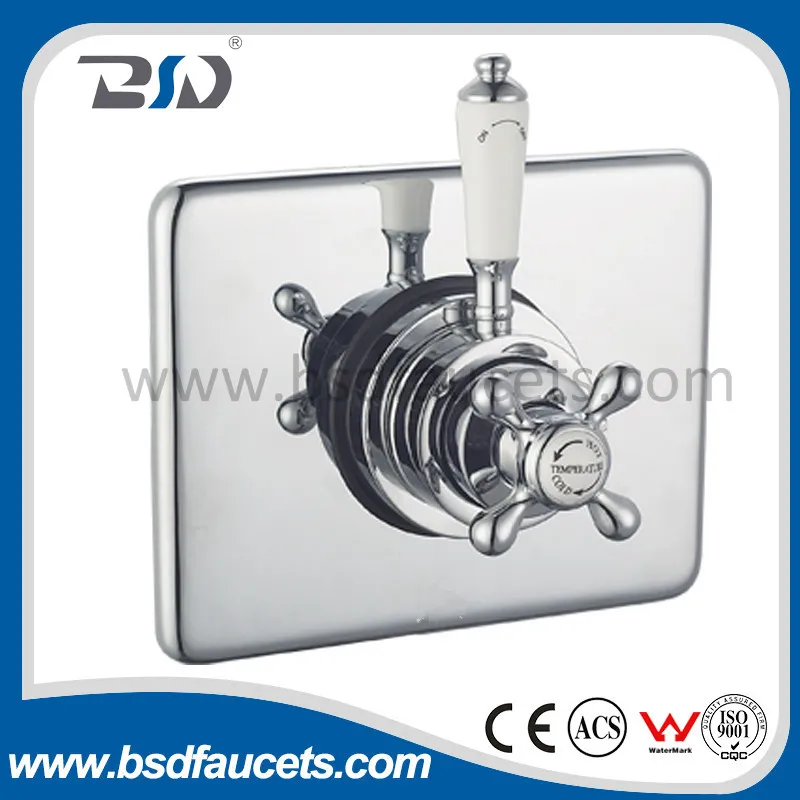

Detail 2
ItemDescription
BodySolid Brass with chrome plated
HandleBrass with chrome plated
CartridgeBrass thermostatic cartridge, > 500,000 Times Open & Close
Outlets4 ways diverter
SurfaceChrome, bronze, gold, antique brass, brushed nickel etc.
Net weight3620g without package

Key Features

🌡️ 38ºC SECURE Stop

Safety button for blocking the temperature at 38ºC to prevent accidental scalding.

⚙️ EASY System

One mono-block internal cartridge that can be removed and replaced in seconds.

💧 ECO-Stop

Function limits water flow, providing water savings of up to 45%.

⚡ FAST Reaction

Very fast reaction time and immediate temperature balance for a comfortable shower.

Benefits & Performance

  • Thermostatic control to +/-1 degree even if water pressure fluctuates.
  • Full thermal protection to prevent scalding in case of supply failure.
  • Suitable for all systems: gravity fed, pumped, unvented high pressure, or combi-boilers.
  • Fully reversible cartridge: easily adjust if hot and cold supplies are reversed.
  • Shuts down in 1.5 seconds if the cold water supply fails.

Quality Control & Process

Process
Assembly
QC
Step 1Inspection of the casting
Step 2Leakage test after machining
Step 3Surface inspection after polishing
Step 4Surface inspection after plating
Step 5Leakage test in assembly
Step 6Measuring for finished products

Packaging & Logistics

Packing
Shipping

Box Size: 31 * 20.5 * 20.5cm

Transportation: Express (TNT, DHL, UPS, Fedex), Sea, and Air delivery available.

Delivery Time: 3-20 days for samples; 35-45 days for OEM orders.

Certifications

Certificates

Approvals: CE / WATERMARK / ACS / ISO

Frequently Asked Questions

What is the minimum order quantity (MOQ)?
The standard MOQ is 300pcs per item, though trial orders can be negotiated.
Can I request a sample before bulk ordering?
Yes, samples can be provided for a reasonable fee. Sample lead time is approximately 5-10 working days.
What are the available payment terms?
We typically accept a 30% deposit via TT, with the remaining 70% balance due upon the copy of the bill of lading.
Is OEM or private labeling service available?
Yes, we provide full OEM and ODM services, including customized branding and packaging.
How long does delivery take?
General production takes a maximum of 60 days after payment, while general sample orders take between 3-20 days.
What water systems are these valves compatible with?
Our valves are suitable for all common systems, including gravity fed, pumped, unvented high pressure, or fully modulated combi-boilers.
